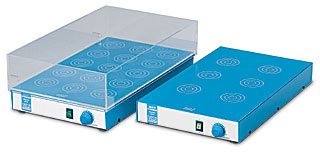

| Multiposition magnetic stirrer
Magnetic stirrer able to stir at the same time up to 6
vessels having a maximum diameter of 85 mm (Multistirrer 6) or up to
15 vessels having a maximum diameter of 64 mm (Multistirrer
15).
After many days of continuous operation the stirrer remains
cool.
This feature is particularly appreciated in microbiology
and biochemistry.
It is possible to thermostate the samples by a
proper water recirculation bath.
Specifications | |
 |
|
|
| Instruments |
Volts |
Hertz |
|
Code |
| Multistirrer 6 |
220-240 |
50-60 |
|
F20300177 |
| Multistirrer 6 |
110-120 |
50-60 |
|
F20310177 |
| Multistirrer 15 |
220-240 |
50-60 |
|
F20300178 |
| Multistirrer 15 |
110-120 |
50-60 |
|
F20310178 |
| Different
power supply on request | |
|
| Epoxy
painted metal structure studied and tested in order to give to the
instrument an excellent resistance to the attack of chemical and
mechanical agents and to corrosion in general |
| Electronic
speed regulation: |
50 ¡Â 850
rpm |
| Very good
speed control also at low number of revolutions |
| Maximum
stirring capacity: |
6 beakers
of 400 ml or 15 beakers of 250 ml |
High-power
driving magnets type "PCM"
(See page
42) | |
|
| Upon
request accessories |
Code |
Water tank
for thermostatting samples,
408x240x85 mm |
A00001055 |
| Magnetic
stir bar, 6x35 mm |
A00001056 | |
|
 |
|
|
|
 |
|
|
| Multistirrer 6 |
|
A00001055 |
|
A00001056 |
|
| Power: |
8
W |
| Weight: |
2.2
kg | |
|
|
|
 |
|
|
|
55 |
|
|
|
240 |
|
408 |
|
|
|
Multistirrer 15 |
|
|
| Power: |
15
W |
| Weight: |
2.8
kg | |
|
|
|
 |
|
|
|
55 |
|
|
|
240 |
|
408 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
