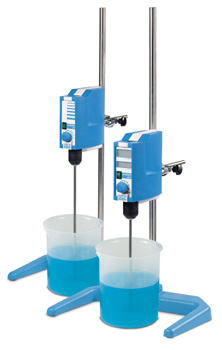

| Laboratory stirrers
The laboratory stirrers model LH and DLH are characterized by
a high torque allowing their use with highly viscous
liquids.
The powerful motor with a sturdy construction is
microprocessor controlled assuring a constant speed also if
variations of viscosity of the stirred liquid occur.
Choice of
stirring speed between 50 and 2000 rpm.
A progressive start
avoids spillages of stirred liquids.
A safety system against
"over loads" protects the equipment in case of improper operation or
motor failure.
The quality of manufacturing materials allows a
continuous noiseless and precise operation, absolutely reproducible.
The manufacturing technology assures a safe and easy use with a
limited volume and weight.
The accurate ergonomic project, the
modern and compact structure make these two models particularly
attractive not only for their technical features but also for the
nice design.
The model DLH is equipped with two digital displays
showing clearly the set and the actual speeds.
Specifications | |
|
|
| |
LH |
DLH |
| Stirring speed (rpm): |
50 ¡Â 2000 |
50 ¡Â 2000 |
| Speed display (rpm): |
- |
LCD |
| Resolution (rpm): |
- |
1 |
| Allowed room temperature (¡ãC): |
0
¡Â 40 |
0
¡Â 40 |
| Maximum stirrable volume (H2O): |
25 liters |
25 liters |
| Chuck with through hole Ø (mm): |
1
¡Â 10 |
1
¡Â 10 |
| Power: |
120 W |
120 W |
| Weight: |
3.40 kg |
3.45 kg | |
|
| Instruments |
Volts |
Hertz |
|
Code |
| LH |
220-240 |
50-60 |
|
F20100156 |
| LH |
110-120 |
50-60 |
|
F20110156 |
| DLH |
220-240 |
50-60 |
|
F20100157 |
| DLH |
110-120 |
50-60 |
|
F20110157 |
| Different
power supply on request | |
|
| Upon
request accessories |
Code |
| Support rod
and base |
A00001300 |
| Double
clamp |
A00001301 |
| Ribbon
clamp |
A00001302 |
| Stirring
shaft with floating blade, stainless steel |
A00001304 |
| Stirring
shaft with folding blade, stainless steel |
A00001305 |
| Stirring
shaft with fixed blade, stainless steel |
A00001306 |
| Stirring
shaft with propeller, stainless steel |
A00001307 |
| Stirring
shaft with paddle, 6 holes, stainless steel |
A00001308 |
| Stirring
shaft with turbine, stainless steel |
A00001309 |
| Stirring
shaft with turbo propeller, stainless steel |
A00001310 |
| Stirring
shaft with anchor, stainless steel |
A00001311 | |
|
 |
|
|
| 230 |
|
|
| 80 |
|
196 |
|
|
|
 |
|
 |
|
|
|
A00001300 |
|
A00001301 |
|
|
|
 |
|
|
|
A00001302 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
 |
|
|
|
A00001306 |
|
A00001307 |
|
|
|
A00001304 |
|
|
|
A00001305 |
|
|
|
 |
|
 |
 |
 |
|
|
A00001311 |
|
|
|
A00001308 |
|
A00001309 |
|
|
|
A00001310 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
