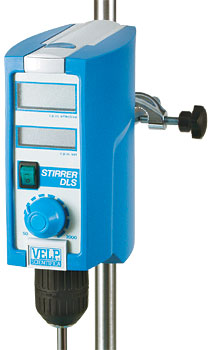

Laboratory stirrer

The laboratory stirrer model DLS is characterized by a high torque allowing their use with medium viscosity liquids.
The powerful motor with a sturdy construction is microprocessor controlled assuring a constant speed also if variations of viscosity of the stirred liquid occur.
Choice of stirring speed between 50 and 2000 rpm. A progressive start avoids spillages of stirred liquids.
A safety system against "over-loads" protects the equipment if an uncorrect operation or blocking of motor occur.
The quality of manufacturing materials allows a continuous noiseless and precise operation, absolutely reproducible.
The used building technology assures a safe and easy use with a limited volume and weight.
The accurate ergonomic project, the modern and compact structure make the stirrers appreciable not only for their technical features but also for the nice design.
The model DLS is equipped with two digital displays showing clearly the set and the actual speeds.

Specifications

Stirring speed 50 ¡Â 2000 rpm
Visualizzazione della velocit¨¤ (rpm) LCD
Resolution 1 rpm
Allowed room temperature 0 ¡Â 40¡ãC
Maximum stirrable volume (H2O) 25 liters
Chuck with through hole Ø 1 ¡Â 10 mm
Power 60 W
Weight 3 kg
Instruments
Volts
Hertz

Code
DLS 220-240 50-60   F20100155
DLS 110-120 50-60   F20110155
Different power supply on request
Upon request accessories

Code

Support rod and base A00001300
Double clamp A00001301
Ribbon clamp A00001302
Stirring shaft with floating blade, stainless steel A00001304
Stirring shaft with folding blade, stainless steel A00001305
Stirring shaft with fixed blade, stainless steel A00001306
Stirring shaft with propeller, stainless steel A00001307
Stirring shaft with paddle, 6 holes, stainless steel A00001308
Stirring shaft with turbine, stainless steel A00001309
Stirring shaft with turbo propeller, stainless steel A00001310
Stirring shaft with anchor, stainless steel A00001311
220
80
196

A00001300

A00001301

A00001302

A00001306

A00001307

A00001304

A00001305

A00001311

A00001308



A00001309

A00001310
