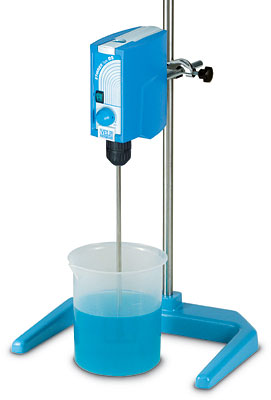

Laboratory stirrer

Laboratory stirrer for liquids of low to medium viscosity.
Able to stir up to 25 liters with reference to water with a speed range from 50 to 2000 rpm.
The instrument allows continuous operation in total safety, as it is equipped with internal safety devices that stop operation in the event of any malfunctions or if working conditions are too strenuous.
A progressive start avoids spillages of stirred liquids.
The manufacturing materials and technologies used, allow a reliable and noiseless operation with easy of use.
The compact structure, the microprocessor controlled motor and the keyless mandrel make the instrument particularly simple to use.
Ergonomic design with limited size and weight.

Specifications

Stirring speed 50 ¡Â 2000 rpm
Allowed room temperature 0 ¡Â 40¡ãC
Maximum stirrable volume (H2O) 25 litrers
Chuck with through hole Ø 1 ¡Â 10 mm
Power 60 W
Weight 2.8 kg
Instruments
Volts
Hertz

Code
BS 230 50-60   F20100151
BS 115 50-60   F20110151
Different power supply on request
215
80
196
Upon request accessories

Code

Support rod and base A00001300
Double clamp A00001301
Ribbon clamp A00001302
Stirring shaft with floating blade, stainless steel A00001304
Stirring shaft with folding blade, stainless steel A00001305
Stirring shaft with fixed blade, stainless steel A00001306
Stirring shaft with propeller, stainless steel A00001307
Stirring shaft with paddle, 6 holes, stainless steel A00001308
Stirring shaft with turbine, stainless steel A00001309
Stirring shaft with turbo propeller, stainless steel A00001310
Stirring shaft with anchor, stainless steel A00001311

A00001300

A00001301

A00001302

A00001306

A00001307

A00001304

A00001305

A00001311

A00001308

A00001309

A00001310
