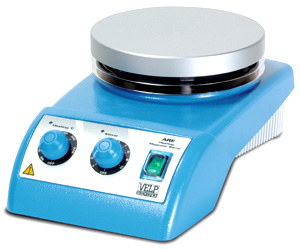

| Heating magnetic stirrer
Magnetic stirrer with a heating plate manufactured by
aluminium casting.
The heating plate is covered by a special
protection assuring a very uniform heating distribution on the whole
surface with a high resistance to chemicals
Specifications | |
|
| Aluminium
casted structure with an epoxy paint purposely studied assuring a
high resistance to chemicals and mechanical corrosion in
general |
| Electronic
speed control |
50 ¡Â 1200
rpm with
continuous regulation |
|
High strength driving magnet type PCM driver by a brushless
motor for continuous operation |
|
Heating setting by means of a thermoelement from room
temperature to 370¡ãC |
| Diameter of
heating plate |
155
mm |
| Stirring
capacity (H2O) |
up to 15
liters |
| Power: |
630
W |
| Weight: |
2.9
kg |
| Protection
class |
(DIN 40050) IP 42 | |
|
| Instruments |
Volts |
Hertz |
|
Code |
| ARE |
220-240 |
50 |
|
F20520162 |
| ARE |
220-240 |
60 |
|
F20530162 |
| ARE |
110-120 |
60 |
|
F20530162 |
| Different
power supply on request | |
|
|
| Upon
request accessories |
Code |
| Hemispheric
bowl for 250 mI flasks |
A00001071 |
| Hemispheric
bowl for 500 mI flasks |
A00001072 |
| Hemispheric
bowl for 1000 mI flasks |
A00001073 |
| Magnetic
stir bar, 6x35 mm |
A00001056 |
| Magnetic
stir bar, 9,5x60 mm |
A00001061 |
| Support
rod |
A00001069 | |
|
|
 |
|
|
| 115 |
|
|
|
165 |
|
280 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
A00001071 |
|
A00001072 |
|
A00001073 |
|
|
|
 |
|
 |
|
|
|
A00001056 |
|
|
|
A00001061 |
|
|
 |
|
|
|
A00001069 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
