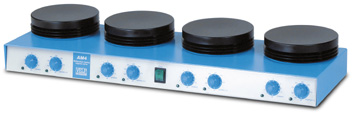

| Multiposition heating magnetic stirrer
A
heating magnetic stirrer offering four independently controlled
positions.
The heating plates, built in aluminium alloy, are
finished with a tick coating of a BLACK proprietary resin that
provides a very uniform heating distribution on the whole surface
with a high resistance to chemical agents.
Specifications | |
|
|
 |
|
| Epoxy
painted metal structure studied and tested in order to give to the
instrument an excellent resistance to the attack of chemical and
mechanical agents and to corrosion in general |
| Electronic speed control, indipendent setting of revolutions
for each stirring position |
50 ¡Â 1200 rpm by means of a continuous
regulation |
| Hight-power
driving magnet type "PCM" operated by a mono-phase motor for
continuous operation |
| Heating
setting by means of a thermoelement from room temperature up to
370¡ãC on each single heating head |
| Heating plate diameter: |
155
mm |
| Stirring capacity (H2O): |
up to 10
liters |
| Adjustable,
upon request, for connection to Vertex |
| Power: |
2550
W |
| Weight: |
8.3
kg | |
|
|
|
| Instruments |
Volts |
Hertz |
|
Code |
| AM4 |
220-240 |
50 |
|
F20520166 |
| AM4 |
220-240 |
60 |
|
F20530166 |
| AM4 |
220-240 |
50 |
|
F20520066* |
| Different
power supply on request |
| *Predisposed for Vertex connections |
| | |
|
| Upon
request accessories |
Code |
| Hemispheric
bowl for 250 mI flasks |
A00001071 |
| Hemispheric
bowl for 500 mI flasks |
A00001072 |
| Hemispheric
bowl for 1000 mI flasks |
A00001073 |
| Magnetic
stir bar, 6x35 mm |
A00001056 |
| Magnetic
stir bar, 9.5x60 mm |
A00001061 |
| Support
rod |
A00001069 | |
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
 |
|
|
| 115 |
|
|
|
A00001071 |
|
A00001072 |
|
A00001073 |
|
|
|
715 |
|
220 |
|
|
|
 |
|
 |
|
|
|
A00001056 |
|
|
|
A00001061 |
|
|
 |
|
|
|
A00001069 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
